Virnig V60 Four-Cylinder Pipe Pallet Fork Grapple (SSL) (CTL)

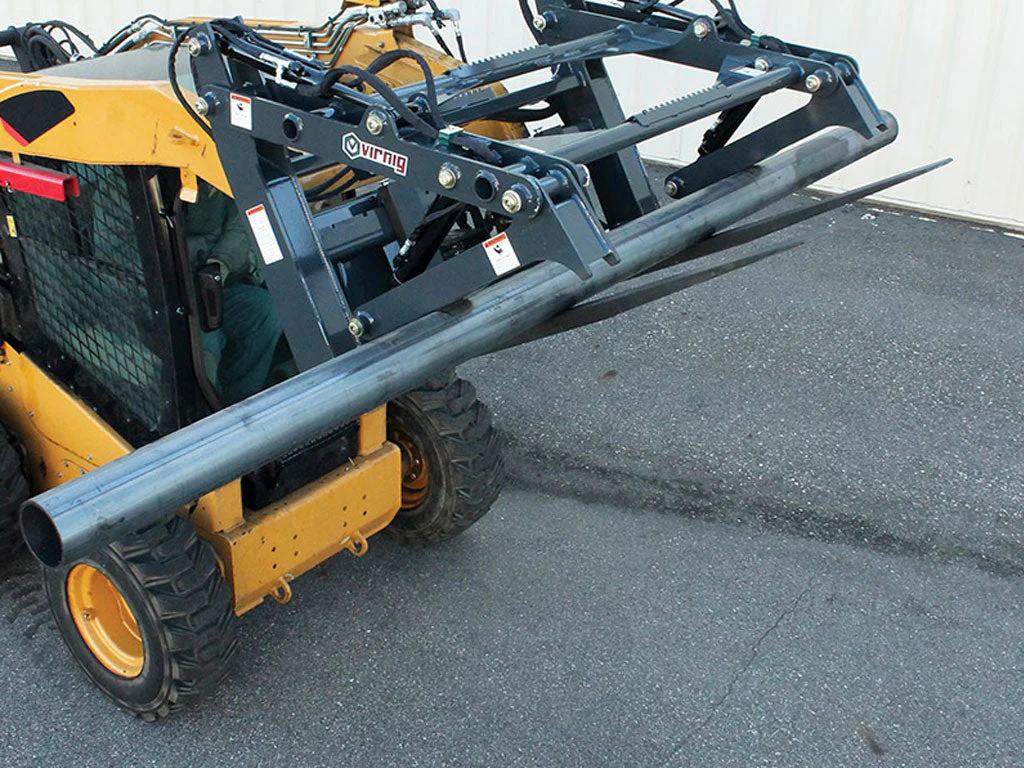

The Virnig V60 Four-Cylinder Pipe Pallet Fork Grapple (SSL) (CTL) is a rugged skid-steer attachment designed to securely grab and move long pipe and other elongated materials, even on uneven terrain. Built for professionals in construction, pipeline, and utilities, it delivers consistent clamping pressure and stable handling to boost safety and productivity.
- Frame and dimensions: 69" overall width with a 54" wide frame for stability; closed height 42.5" and open height 62.0" to accommodate varying pipe lengths; grapple arm width 11.4".
- Tines: 48" CascadeĀ® ITA Class II forged tines rated at 6200 lbs, 4" wide and 1.75" thick, engineered to grip long material securely without bending.
- Cylinder system: Four-cylinder design with 2" bore and 8.375" stroke cylinders featuring NitroSteelĀ® rods for corrosion, dent, and flake resistance; greasable 1Ā¼" diameter cylinder and hinge pins for easy maintenance.
- Hydraulics and fittings: Includes universal skid-steer mounting hoses, couplers & fittings plus a machine-specific hydraulic package to protect hose routing and minimize wear.
- Load capacity and weight: Lift capacity of 6200 lbs with the unit weighing 1110 lbs, making it robust enough for demanding pipe handling tasks.
- Operational design: The four-cylinder arrangement applies consistent pressure to long pipes, with main arms moving first and secondary arms engaging when resistance is encountered, improving control on rough terrain.
- Compatibility and cautions: SSL mounting compatibility; note a known clearance issue on John Deere G-Series loaders (330G, 331G, 332G, 333G)āverify fitment before use.
This attachment is engineered for high-demand environments and is well-suited for heavy-use operations common on construction sites, utility installations, and pipe-laying projects. Itās designed to minimize pipe damage, reduce manual handling, and speed up loading and staging of long materials. In-stock items typically ship in 3ā5 days, helping you plan projects with confidence and minimize downtime. For non-stock configurations, lead times can extend, so plan accordingly.
| Model | 48" |
| Overall Width (in) | 69 |
| Depth (in) | 58 |
| Height Closed (in) | 42.5 |
| Height OpenĀ (in) | 62.0 |
| Grapple Arm Width | 11.4 |
| Tine Length / Width / Thickness (in) | 48 / 4 / 1.75 |
| Lift Capacity (lbs) | 6200 |
| Weight (lbs) | 1110 |
