Virnig High Dump Bucket for Skid Steer
Enhance your skid steer’s material handling with the Virnig High Dump Bucket — a premium attachment designed to boost dump height and reach for farms, construction sites, and waste-management tasks. It ships with universal skid steer mounting hoses, couplers, and fittings for quick, hassle-free installation.
- Included Universal Mounting Kit: Comes with universal skid steer mounting hoses, couplers, and fittings for fast, compatible installation.
- Increased Dump Height and Reach: Adds approximately 44 inches of vertical lift and about 13 inches of horizontal reach for easy loading of tall containers and trucks.
- Enhanced Visibility: Strategic window design improves operator visibility during material handling for safer, more precise operation.
- Durable Construction: Built with high-strength components that resist wear and corrosion in demanding environments.

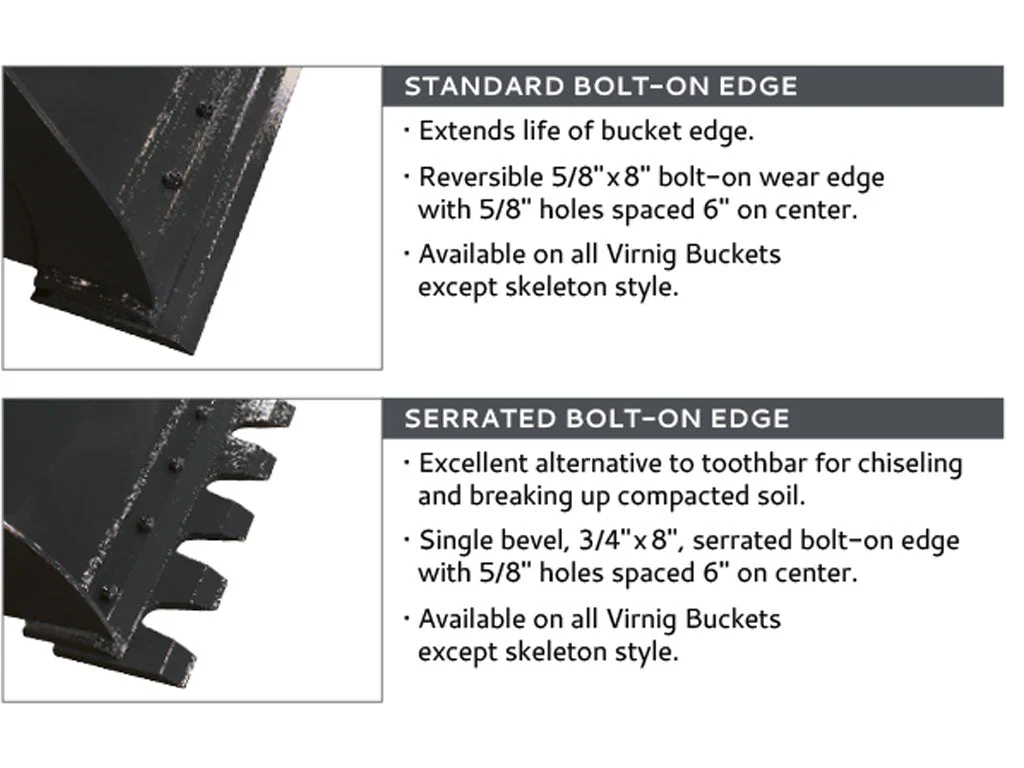

- Optional Edges: Available bolt-on cutting edge (BOCE) or serrated edge (SE) to extend life and tailor performance to different materials.
- Available Widths: 60", 72", 84", and 96" options to match a wide range of skid steer models and load profiles.
- Capacity: Struck capacity ranges from 22.8 to 36.6 cubic feet; heaped capacity ranges from 27.4 to 43.9 cubic feet depending on the model.
- Weight and Dimensions: Bucket weights from 1,015 to 1,310 pounds; overall widths of 61.5", 73.5", 85.5", and 97.5" respectively; depth 47.3", height 29.8", window height 4.0".
- Dump Angle: 86 degrees for efficient unloading.
- Specialized Hardware: Cylinder bore 2.0 inches and stroke 8.375 inches; hinge pins 1.25" and 1.563" diameter; under-bucket wear bars 1/2" x 4" protective reinforcements.
- Applications: Ideal for agricultural loading (feed mixers, bulk materials), construction site material transfer, and waste/recycling facility operations.
This bucket is designed for loaders with operating capacities greater than 1,800 pounds (ROC > 1800 lbs) to ensure optimal performance and safety. Whether you’re loading feed into a mixer, loading trucks, or moving recyclables, the High Dump Bucket delivers reach, visibility, and durability to get the job done efficiently while standing up to tough, daily-use conditions.
| Model | 60" | 72"" | 84" | 96" |
| Overall Width (in) | 61.5 | 73.5 | 85.5 | 97.5 |
| Depth (in) | 47.3 | 47.3 | 47.3 | 47.3 |
| Height (in) | 29.8 | 29.8 | 29.8 | 29.8 |
| Window Height (in) | 4.0 | 4.0 | 4.0 | 4.0 |
| Dump Angle (degrees) | 86.0 | 86.0 | 86.0 | 86.0 |
| Struck Capacity (cu ft) | 22.8 | 27.4 | 32.0 | 36.6 |
| Heaped Capacity (cu ft) | 27.4 | 32.9 | 38.4 | 43.9 |
|
Structural Wear Bars Under Bucket 1/2" x 4" |
3 | 4 | 4 | 4 |
| Weight (lbs) | 1015 | 1115 | 1215 | 1310 |
