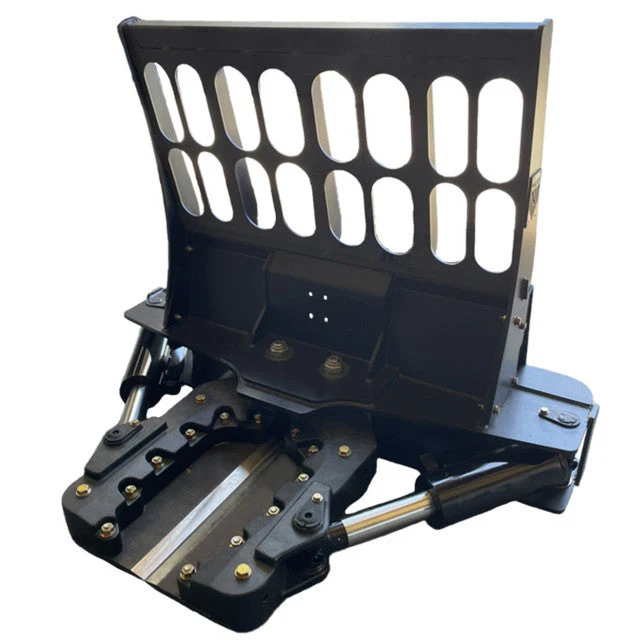

MAXX 14" & 16" TIMBERWOLF FORESTRY TREE SHEARS ATTACHMENT FOR SKID STEER

The Maxx Timberwolf Tree Shears, previously known as Dymax, are high-performance tree shear attachments designed for heavy-duty forestry work. Ideal for skid steer loaders, these shears are built to handle tough conditions with precision and strength. Available in both grapple and bunching models, they offer exceptional cutting power for clearing trees efficiently.

Key Features

• Grapple and Bunching Models: Available in 14" and 16" models, offering standard grapple arms or a bunching feature for holding multiple trees.
• Cutting Efficiency: Equipped with sharp 3/4" AR400 milled knife edges for smooth and effective shearing. Blades are easily adjustable and replaceable.
• Advanced Hydraulic System: Features larger hydraulic lines for reduced pressure loss and a larger rod diameter for faster shear speed. Internal hose routing ensures durability during operation.
• Powerful Shearing Capability: Redesigned frame and improved cylinder provide a high shearing power ratio. Max pressure is 3,000 psi with flow rates between 15-30 gpm.
• Longevity: The shear blade, made from 190mm AR400 high tensile steel, is designed to last up to 2,500 hours with proper maintenance.

What's Included:

• Forestry Grapple
• Universal Skid Steer Mount
• Hoses and flat-faced couplers
• Owner's Manual

Detailed Specifications

• Model: DY-DX-TS-FG-14in-SS-USS

  • Cutting Capacity: 14"
  • Weight: 2250 lbs
  • Dimensions: 64" (Length) x 72" (Width) x 58" (Height)
  • Blade Material: 3/4 AR400 Milled Knife Edges

• Model: DY-DX-TS-FB-14in-SS-USS

  • Cutting Capacity: 14"
  • Weight: 2250 lbs
  • Dimensions: 64" (Length) x 72" (Width) x 58" (Height)
  • Blade Material: 3/4 AR400 Milled Knife Edges

• Model: DY-DX-TS-FG-16in-SS-USS

  • Cutting Capacity: 16"
  • Weight: 2450 lbs
  • Dimensions: 64" (Length) x 72" (Width) x 58" (Height)
  • Blade Material: 3/4 AR400 Milled Knife Edges

• Model: DY-DX-TS-FB-16in-SS-USS

  • Cutting Capacity: 16"
  • Weight: 2450 lbs
  • Dimensions: 64" (Length) x 72" (Width) x 58" (Height)
  • Blade Material: 3/4 AR400 Milled Knife Edges

General Warranty Info:

• Skid Steer Store works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!
